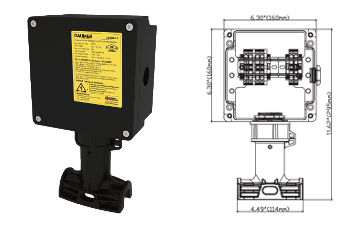

GB100M Multiple Entry Power Connection Kit

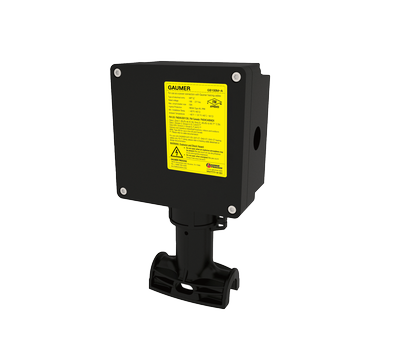

The Gaumer GB Series Connection Accessories are designed to provide power connection and termination for GHT, GHU or GHK industrial self-regulating heating cables. The GB100M utilizes pipe standoff for on-pipe installation to allow heating cables to directly enter the enclosure without the use of insulation while protecting the cables from exposure. The GB series connection kits use core sealer and RTV adhesive without the need for heat gun for installation. Spring-type terminals provide safe and reliable connections with capacity up to 8 AWG conductor sizes. The GB100M-A kit has enclosure with one NPT 3/4" through hole, GB100M-E with one M25 through hole for power entry, to energize up to three heating cables. The GB100M may also be used as splice of two heating cables, Tee connection of three heating cables, or end of the circuit termination if the through hole is blocked with a certified plug. The junction box can be configured to have an additional through hole to have two power entries to connect two separate heating cable circuits.
